High-speed data jacket
Lightweight wear protection for differential or video cables.
/
PROTECT / ARJ / 01
Abrasion-Resistant Cable Jackets

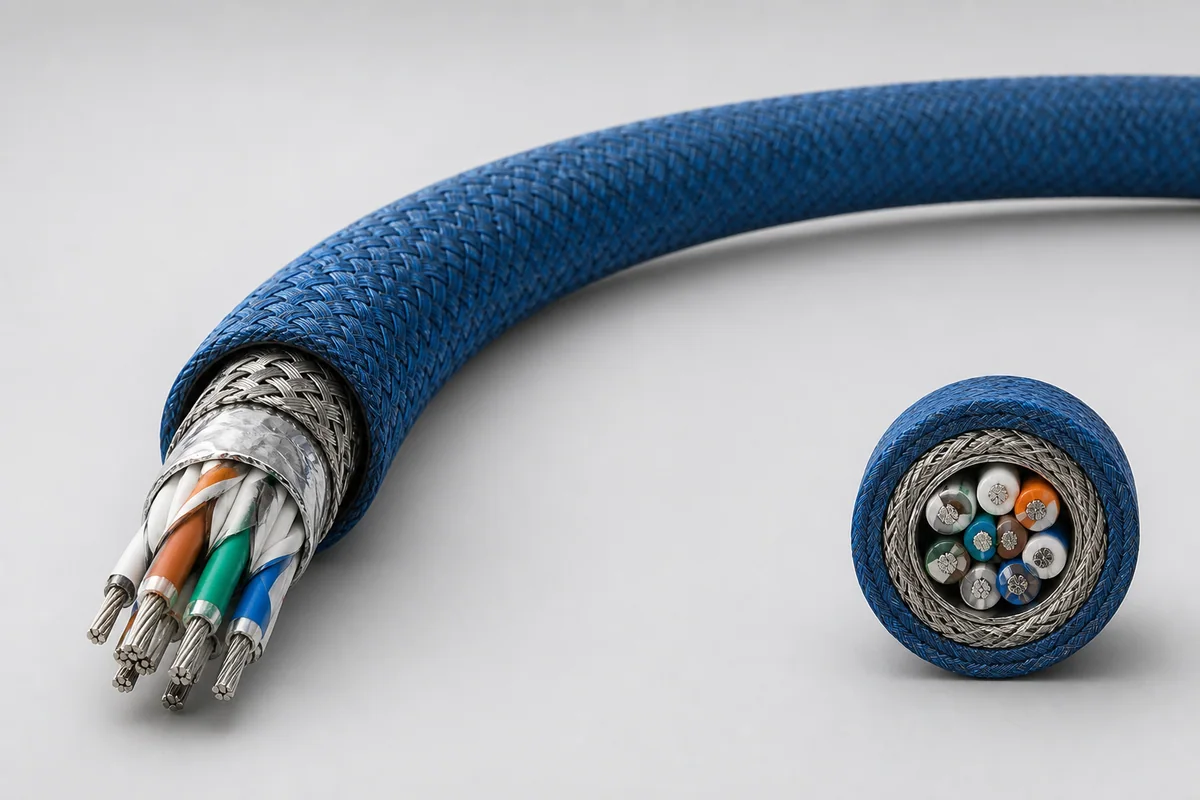

Thin, lightweight engineered fluoropolymer fiber braid directly protects high-speed copper cables, improving hot cut-through, scrape and repeated-abrasion durability without traditional sleeving.
>8,000 scrape cycles−65 to +200 °CHigh-temperature cut-through resistance
PRODUCT FAMILYSecondary Insulation Systems ↗
01 / CONFIGURATION DIRECTIONS
Select a configuration from the application boundaries
These configurations establish a practical discussion starting point. The final product requires a controlled specification based on interface, length, installation and validation conditions.
Moving seat harness
For repeated motion and edge contact in cockpit and cabin seats.
Localized reinforcement
Custom length at pinch, pass-through and high-service zones.
Match a solution direction to the link target
Solution codes support early technical discussions by aligning protocol, construction, link boundaries and application in one view.
SOLUTION CODEPROTOCOL / RATECONSTRUCTIONKEY BOUNDARYBEST FIT
PROTECT-ARJ-01High-speed data jacketLightweight wear protection for differential or video cables.>8,000 scrape cyclesCockpit and cabin seats
PROTECT-ARJ-02Moving seat harnessFor repeated motion and edge contact in cockpit and cabin seats.−65 to +200 °CDefense-vehicle high-speed data
PROTECT-ARJ-03Localized reinforcementCustom length at pinch, pass-through and high-service zones.High-temperature cut-through resistanceSharp-edge and moving harness zones
MODEL NOTESecondary protection changes harness diameter, mass, flexibility and cooling and must be assessed with the original cable and routing envelope.
02 / PERFORMANCE PARAMETERS
Product performance parameters
The following values describe current product performance boundaries, with the applicable model, construction or test condition retained.
PERFORMANCE METRICVALUECONFIGURATION / CONDITION
01Scrape abrasion> 8,000 cycles
EN3475-503; 30/55 °C, 1.2 daN
02Cut-through resistance122 / 73 / 59 kg
SAE AS4373-703; 23/70/150 °C
03Temperature range−65 to +200 °C
Example cable configuration
04Jacket materialEngineered fluoropolymer fiber braid
Standard construction
05Data rateUp to 18 Gb/s
HDMI 2.0 example using the jacket
06Standard impedance100 ± 10 Ω
HDMI 2.0 example
Electrical values apply to an HDMI 2.0 cable packaged with this jacket; the jacket's core metrics are high-temperature cut-through and scrape abrasion.
Technical referenceValues are confirmed against category, gauge, length and termination
03 / TYPICAL CONSTRUCTION
From functional core to terminated interface
Protected cable
Original diameter, temperature, motion and sensitive surfaces are confirmed.
Isolation buffer
Reduces imprint, friction and thermal effects from protection materials.
Main protection
Extruded jacket, ePTFE, fiber or metal braid provides the defense.
Closure and branch
Sleeving, wrapping, tying or custom branching supports installation and service.
End restraint
Rings, backshells or strain relief control fray and edge wear.
04 / SELECTION & VALIDATION
Inputs needed to start a custom assessment
SELECTION ITEMINFORMATION TO CONFIRM
01Harness size
Cable count, diameter range and branch layout
02Damage mode
Abrasion, scrape, cut, crush or vibration
03Motion
Relative movement, speed, stroke and bend radius
04Environment
Temperature, fluids, flame, vacuum and cleanliness
05Installation/service
Field fit, removability and connector backshell
06Additional function
EMI suppression, grounding, color and marking
Typical applications
- Cockpit and cabin seats
- Defense-vehicle high-speed data
- Sharp-edge and moving harness zones
- Lightweight aircraft harness reinforcement
Interfaces & delivery
- Secondary cable or harness covering
- M85049/88-style backshell direction
- Custom diameter, branch and end treatment
ENGINEERING NOTE
Secondary protection changes harness diameter, mass, flexibility and cooling and must be assessed with the original cable and routing envelope.
Ready to define a controlled specification?
Bring us the interface, environment and validation requirements.
Yidong Telecom can build a sample direction and validation matrix around the cable construction, termination and system boundaries.
Submit requirement checklist ↗
