Copper harness protection
External mechanical defense for high-speed data or control harnesses.
/
PROTECT / CPS / 02
Cable Protection Systems

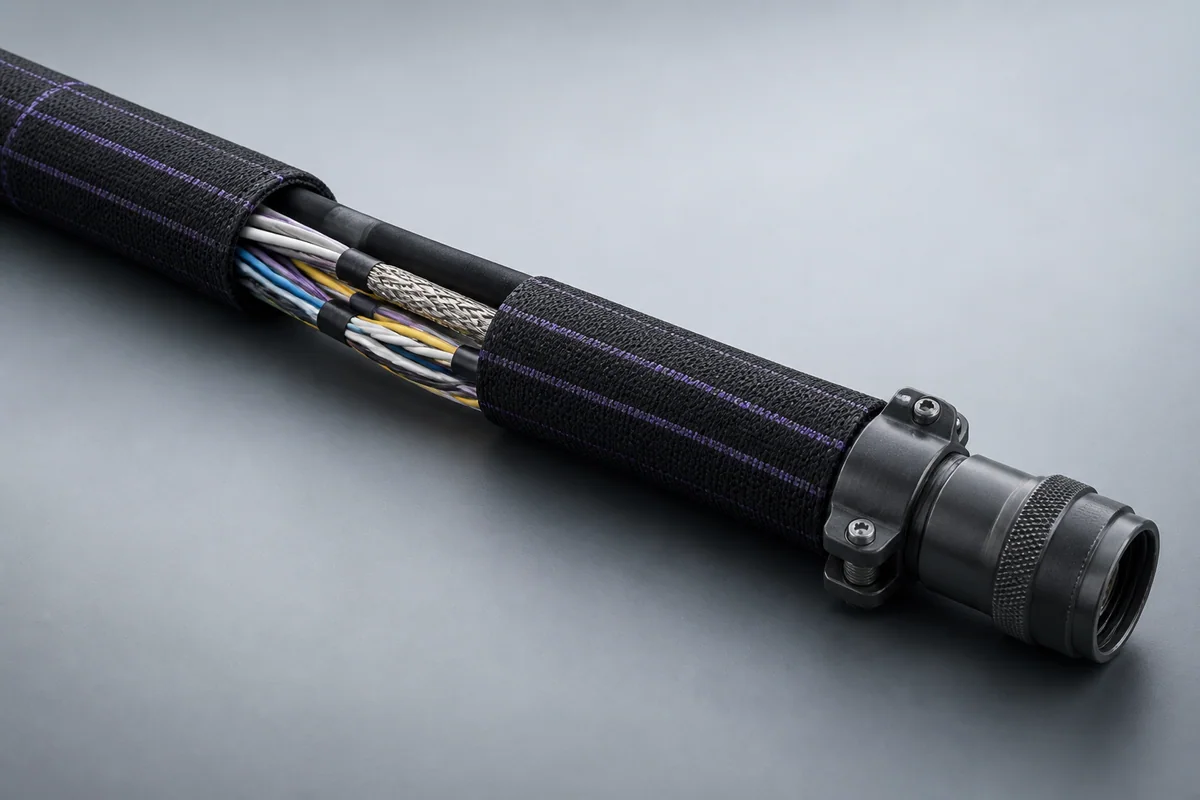

Crush- and abrasion-resistant, chemically inert ePTFE/PTFE jacket systems package copper and fiber while allowing internal cables to move through complex routes, vibration and harsh fluids.
−65 to +260 °CCrush and abrasion resistanceCopper/fiber compatible
PRODUCT FAMILYSecondary Insulation Systems ↗
01 / CONFIGURATION DIRECTIONS
Select a configuration from the application boundaries
These configurations establish a practical discussion starting point. The final product requires a controlled specification based on interface, length, installation and validation conditions.
Fiber bundle protection
Allows fiber movement inside the cover to reduce installation damage.
Backshell-integrated system
Compatible with M85049/88 or similar banding-platform backshells.
Match a solution direction to the link target
Solution codes support early technical discussions by aligning protocol, construction, link boundaries and application in one view.
SOLUTION CODEPROTOCOL / RATECONSTRUCTIONKEY BOUNDARYBEST FIT
PROTECT-CPS-01Copper harness protectionExternal mechanical defense for high-speed data or control harnesses.−65 to +260 °CAvionics high-speed harnesses
PROTECT-CPS-02Fiber bundle protectionAllows fiber movement inside the cover to reduce installation damage.Crush and abrasion resistanceDefense-vehicle interconnects
PROTECT-CPS-03Backshell-integrated systemCompatible with M85049/88 or similar banding-platform backshells.Copper/fiber compatibleComplex pass-through and tight bends
MODEL NOTESecondary protection changes harness diameter, mass, flexibility and cooling and must be assessed with the original cable and routing envelope.
02 / PERFORMANCE PARAMETERS
Product performance parameters
The following values describe current product performance boundaries, with the applicable model, construction or test condition retained.
PERFORMANCE METRICVALUECONFIGURATION / CONDITION
01Jacket materialExpanded PTFE / PTFE
Standard protection system
02Temperature range−65 to +260 °C
Environmental range
03Jacket colorBlack with violet stripes
Standard identification
04Mechanical protectionCrush & abrasion resistant
Construction characteristic
05Chemical performanceChemically inert
Material characteristic
06Backshell compatibilityM85049/88
And similar banding-platform backshells
The table covers protection-system material and temperature values; electrical or optical values for the enclosed copper or fiber must be specified separately.
Technical referenceValues are confirmed against category, gauge, length and termination
03 / TYPICAL CONSTRUCTION
From functional core to terminated interface
Protected cable
Original diameter, temperature, motion and sensitive surfaces are confirmed.
Isolation buffer
Reduces imprint, friction and thermal effects from protection materials.
Main protection
Extruded jacket, ePTFE, fiber or metal braid provides the defense.
Closure and branch
Sleeving, wrapping, tying or custom branching supports installation and service.
End restraint
Rings, backshells or strain relief control fray and edge wear.
04 / SELECTION & VALIDATION
Inputs needed to start a custom assessment
SELECTION ITEMINFORMATION TO CONFIRM
01Harness size
Cable count, diameter range and branch layout
02Damage mode
Abrasion, scrape, cut, crush or vibration
03Motion
Relative movement, speed, stroke and bend radius
04Environment
Temperature, fluids, flame, vacuum and cleanliness
05Installation/service
Field fit, removability and connector backshell
06Additional function
EMI suppression, grounding, color and marking
Typical applications
- Avionics high-speed harnesses
- Defense-vehicle interconnects
- Complex pass-through and tight bends
- Vibration, oil and chemical exposure
Interfaces & delivery
- Secondary cable or harness covering
- M85049/88-style backshell direction
- Custom diameter, branch and end treatment
ENGINEERING NOTE
Secondary protection changes harness diameter, mass, flexibility and cooling and must be assessed with the original cable and routing envelope.
Ready to define a controlled specification?
Bring us the interface, environment and validation requirements.
Yidong Telecom can build a sample direction and validation matrix around the cable construction, termination and system boundaries.
Submit requirement checklist ↗
