Lightweight ePTFE braid
Wide-temperature, flexible, high-coverage mechanical protection.
/
PROTECT / BRAID / 03
Cable Protective Braids

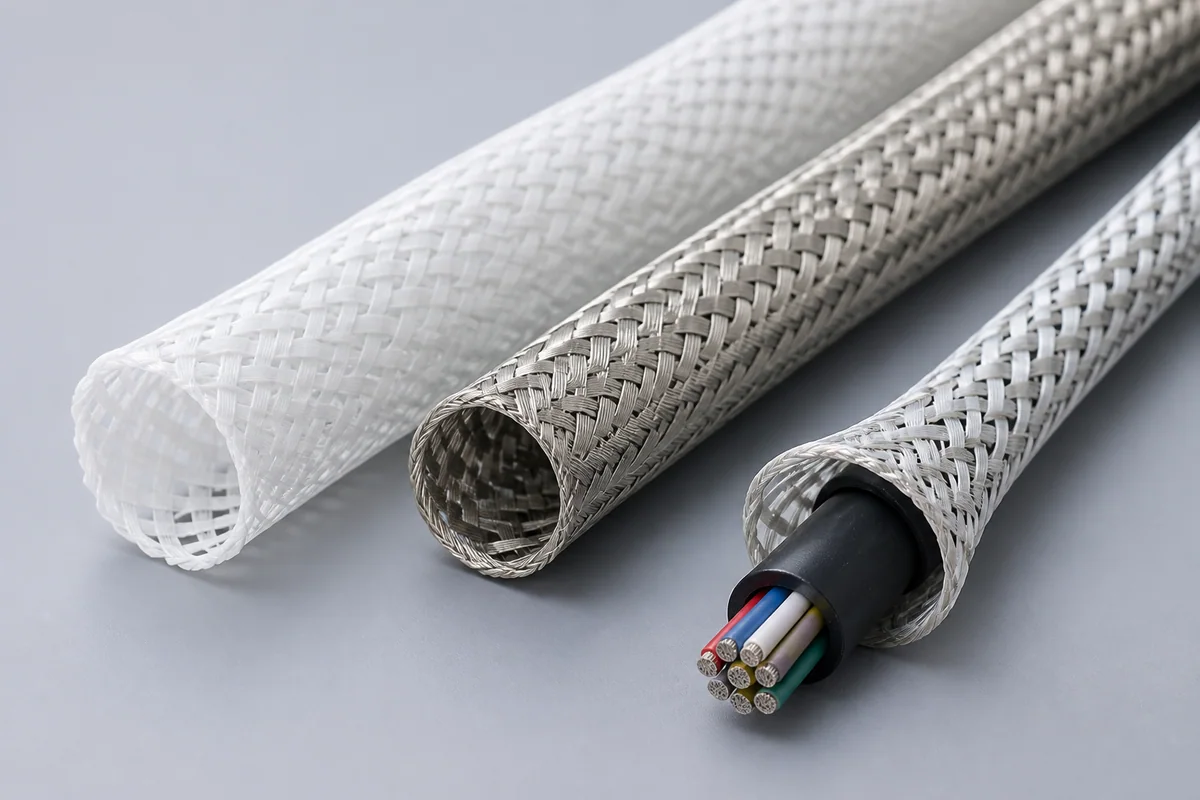

ePTFE, silver-plated copper, nickel-plated copper or composite braid adds wide-temperature protection and EMI suppression to space harnesses while retaining small diameter and routing flexibility.
−200 to +260 °CUp to 99% coverageEMI suppression
PRODUCT FAMILYSecondary Insulation Systems ↗
01 / CONFIGURATION DIRECTIONS
Select a configuration from the application boundaries
These configurations establish a practical discussion starting point. The final product requires a controlled specification based on interface, length, installation and validation conditions.
Silver/nickel copper braid
Shielding, grounding and mechanical reinforcement.
ePTFE over metal braid
Combines outer protection with internal EMI suppression.
Match a solution direction to the link target
Solution codes support early technical discussions by aligning protocol, construction, link boundaries and application in one view.
SOLUTION CODEPROTOCOL / RATECONSTRUCTIONKEY BOUNDARYBEST FIT
PROTECT-BRAID-01Lightweight ePTFE braidWide-temperature, flexible, high-coverage mechanical protection.−200 to +260 °CSpacecraft cable bundles
PROTECT-BRAID-02Silver/nickel copper braidShielding, grounding and mechanical reinforcement.Up to 99% coverageExtreme-temperature equipment harnesses
PROTECT-BRAID-03ePTFE over metal braidCombines outer protection with internal EMI suppression.EMI suppressionEMI-sensitive signal interconnects
MODEL NOTESecondary protection changes harness diameter, mass, flexibility and cooling and must be assessed with the original cable and routing envelope.
02 / PERFORMANCE PARAMETERS
Product performance parameters
The following values describe current product performance boundaries, with the applicable model, construction or test condition retained.
PERFORMANCE METRICVALUECONFIGURATION / CONDITION
01ePTFE temperature−200 to +260 °C
Static application
02Silver-copper temperature−200 to +200 °C
2.5 μm minimum plating
03Nickel-copper temperature−200 to +260 °C
1.2 μm minimum plating
04Dynamic minimum temperature−100 °C
Dynamic-flex application
05Braid coverageUp to 99%
Example ePTFE part number
06Example diameter rangeOD 3.5–16.0 mm
Example sizes
Temperature limits depend on ePTFE, silver-plated copper, nickel-plated copper or composite construction; the dynamic-flex minimum is −100 °C.
Technical referenceValues are confirmed against category, gauge, length and termination
03 / TYPICAL CONSTRUCTION
From functional core to terminated interface
Protected cable
Original diameter, temperature, motion and sensitive surfaces are confirmed.
Isolation buffer
Reduces imprint, friction and thermal effects from protection materials.
Main protection
Extruded jacket, ePTFE, fiber or metal braid provides the defense.
Closure and branch
Sleeving, wrapping, tying or custom branching supports installation and service.
End restraint
Rings, backshells or strain relief control fray and edge wear.
04 / SELECTION & VALIDATION
Inputs needed to start a custom assessment
SELECTION ITEMINFORMATION TO CONFIRM
01Harness size
Cable count, diameter range and branch layout
02Damage mode
Abrasion, scrape, cut, crush or vibration
03Motion
Relative movement, speed, stroke and bend radius
04Environment
Temperature, fluids, flame, vacuum and cleanliness
05Installation/service
Field fit, removability and connector backshell
06Additional function
EMI suppression, grounding, color and marking
Typical applications
- Spacecraft cable bundles
- Extreme-temperature equipment harnesses
- EMI-sensitive signal interconnects
- Compact branches and dense routing
Interfaces & delivery
- Secondary cable or harness covering
- M85049/88-style backshell direction
- Custom diameter, branch and end treatment
ENGINEERING NOTE
Secondary protection changes harness diameter, mass, flexibility and cooling and must be assessed with the original cable and routing envelope.
