26 AWG SpaceWire
Balances link loss, mechanical strength and termination.
/
SPACE / SPACEWIRE / 07
SpaceWire Data Cables
LVDS serial point-to-point links carry bidirectional data up to 400 Mbps with low crosstalk, loss and skew plus lightweight shielding for critical spacecraft interconnects.
400 Mbps≤150 ps/m intra-pair skew10+ MRad
PRODUCT FAMILYSpace Cables ↗
01 / CONFIGURATION DIRECTIONS
Select a configuration from the application boundaries
These configurations establish a practical discussion starting point. The final product requires a controlled specification based on interface, length, installation and validation conditions.
28 AWG lightweight type
Reduces diameter and mass for dense routing.
Terminated assembly
Connector, length and shield grounding form the complete channel.
Match a solution direction to the link target
Solution codes support early technical discussions by aligning protocol, construction, link boundaries and application in one view.
SOLUTION CODEPROTOCOL / RATECONSTRUCTIONKEY BOUNDARYBEST FIT
SPACE-SPACEWIRE-0126 AWG SpaceWireBalances link loss, mechanical strength and termination.400 MbpsHigh-resolution cameras
SPACE-SPACEWIRE-0228 AWG lightweight typeReduces diameter and mass for dense routing.≤150 ps/m intra-pair skewRadar and sensor equipment
SPACE-SPACEWIRE-03Terminated assemblyConnector, length and shield grounding form the complete channel.10+ MRadMemory and telemetry subsystems
MODEL NOTEPage values do not constitute mission qualification or approval. Applicable standards, lot screening and verification levels are confirmed per project.
02 / PERFORMANCE PARAMETERS
Product performance parameters
The following values describe current product performance boundaries, with the applicable model, construction or test condition retained.
PERFORMANCE METRICVALUECONFIGURATION / CONDITION
01Data rate400 Mbps
Bidirectional LVDS link
02Maximum operating voltage200 Vrms
Traditional-space configuration
03Time delay4.30 ns/m
Pair
04Intra-pair skew≤ 150 ps/m
Specification limit
05Dielectric withstand1400 Vrms
Conductor-conductor/shield
06Temperature / radiation−200 to +180 °C · 10+ MRad
Traditional-space configuration
07Vacuum stabilityVCM < 0.1% · TML < 1.0%
ASTM 595 / ECSS-Q-70-02
Values apply to the traditional-space SpaceWire configuration; choose 26 or 28 AWG against link and mass budgets.
Technical referenceValues are confirmed against category, gauge, length and termination

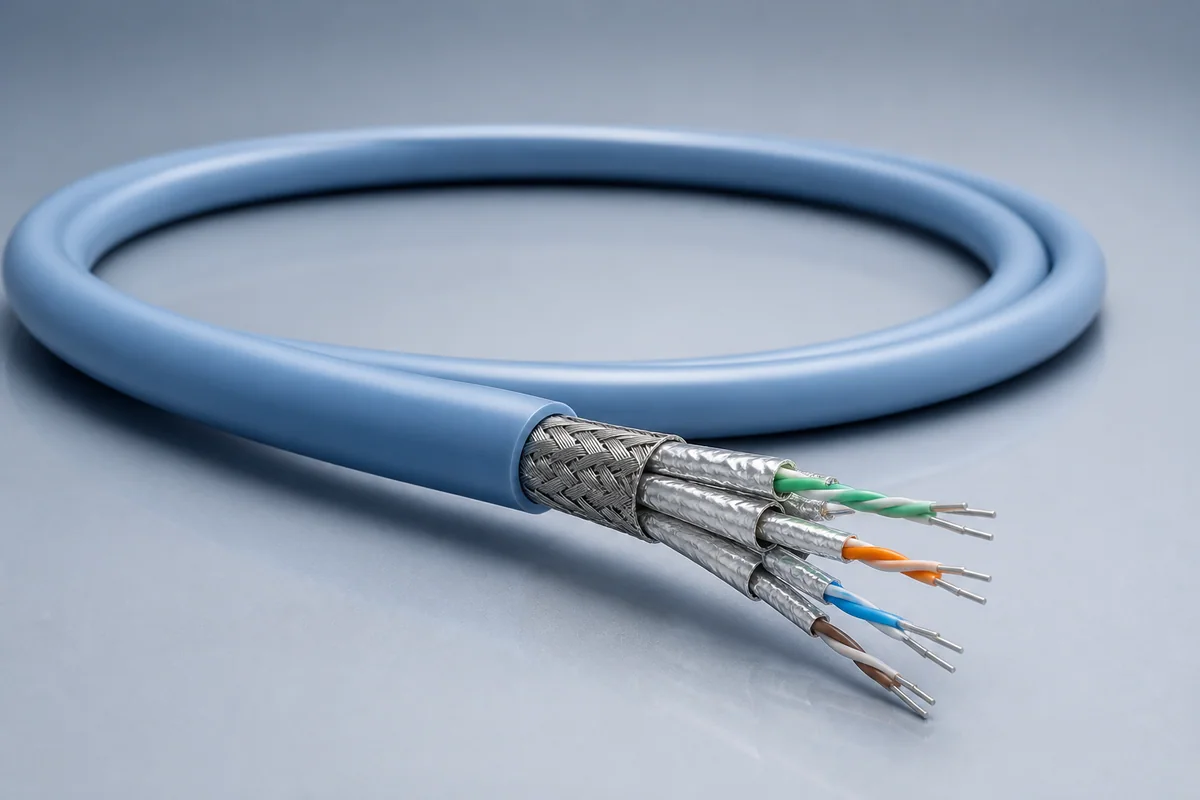

03 / TYPICAL CONSTRUCTION
From functional core to terminated interface
Space-grade conductor
Material, stranding and plating are selected for resistance, strength, flex and termination.
Low-outgassing insulation
Dielectric, thermal, vacuum-stability and processing requirements guide material selection.
Controlled functional unit
Single, twisted, shielded, coaxial or multicore signal geometry is formed.
Lightweight shield and cover
EMI, atomic oxygen, protection and mass are optimized together.
Termination and traceability
Connector, branch, strain relief, material lot and process records remain controlled.
04 / SELECTION & VALIDATION
Inputs needed to start a custom assessment
SELECTION ITEMINFORMATION TO CONFIRM
01Mission and orbit
LEO, GEO, deep space, launch phase and mission duration
02Electrical function
Voltage, current, protocol, frequency, impedance and core count
03Mass and space
Mass per meter, diameter, bend radius and route
04Environment
Vacuum, thermal cycle, radiation, ATOX, vibration and shock
05Harness interface
Connector, branch, lacing, ground and installation process
06Verification level
Applicable ESCC/NASA documents, first article, lot and traceability
Typical applications
- High-resolution cameras
- Radar and sensor equipment
- Memory and telemetry subsystems
- Spacecraft high-speed backbone
Interfaces & delivery
- Single, multicore or shielded space cable
- Space connector and lightweight harness
- Fixed-length assembly, branch or pigtail
ENGINEERING NOTE
Page values do not constitute mission qualification or approval. Applicable standards, lot screening and verification levels are confirmed per project.
Ready to define a controlled specification?
Bring us the interface, environment and validation requirements.
Yidong Telecom can build a sample direction and validation matrix around the cable construction, termination and system boundaries.
Submit requirement checklist ↗
