Single wire
Minimum-mass equipment and power connection.
/
SPACE / LEW / 04

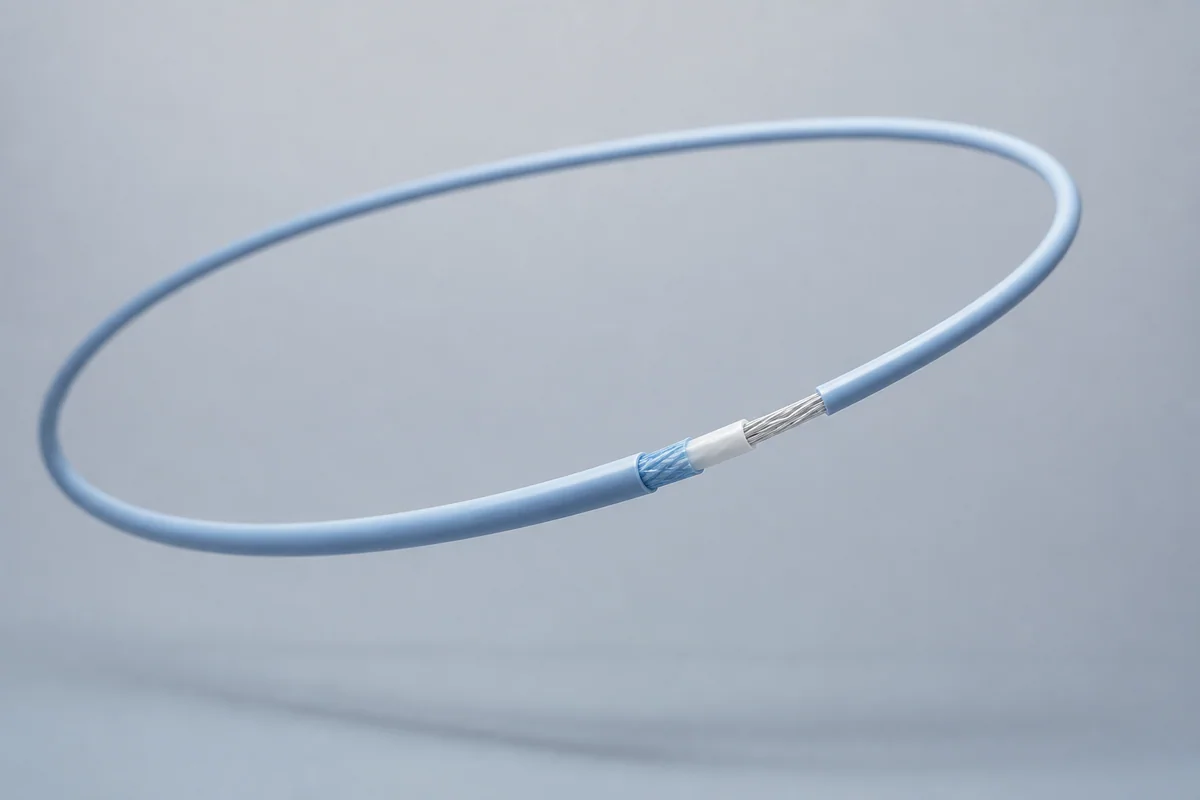

Type LEW Low-Mass LEO Cables
ESCC 3901/026 lightweight LEO wire is up to 27% smaller and 47% lighter while delivering 600 Vrms power and analog/low-frequency signals.
Up to 47% lighter600 Vrms−200 to +200 °C
PRODUCT FAMILYSpace Cables ↗
01 / CONFIGURATION DIRECTIONS
Select a configuration from the application boundaries
These configurations establish a practical discussion starting point. The final product requires a controlled specification based on interface, length, installation and validation conditions.
Twisted pair
Balanced analog and low-frequency signals.
Shielded multicore cable
EMI control, compact routing and termination.
Match a solution direction to the link target
Solution codes support early technical discussions by aligning protocol, construction, link boundaries and application in one view.
SOLUTION CODEPROTOCOL / RATECONSTRUCTIONKEY BOUNDARYBEST FIT
SPACE-LEW-01Single wireMinimum-mass equipment and power connection.Up to 47% lighterManned/unmanned LEO spacecraft
SPACE-LEW-02Twisted pairBalanced analog and low-frequency signals.600 VrmsBox-to-box analog signals
SPACE-LEW-03Shielded multicore cableEMI control, compact routing and termination.−200 to +200 °CPower distribution
MODEL NOTEPage values do not constitute mission qualification or approval. Applicable standards, lot screening and verification levels are confirmed per project.
02 / PERFORMANCE PARAMETERS
Product performance parameters
The following values describe current product performance boundaries, with the applicable model, construction or test condition retained.
PERFORMANCE METRICVALUECONFIGURATION / CONDITION
01Maximum operating voltage600 Vrms
Type LEW cable
02Temperature range−200 to +200 °C
Operating range
03Diameter / weight reductionUp to 27% / 47%
Versus ESCC 3901/012
04Typical mission mass savingAround 35%
Comparative estimate
05Gauge range16–28 AWG
21 variants
06SpecificationESCC 3901/026
ESA QPL
Diameter, mass and typical-mission savings are comparisons against peer ESCC cables.
Technical referenceValues are confirmed against category, gauge, length and termination
03 / TYPICAL CONSTRUCTION
From functional core to terminated interface
Space-grade conductor
Material, stranding and plating are selected for resistance, strength, flex and termination.
Low-outgassing insulation
Dielectric, thermal, vacuum-stability and processing requirements guide material selection.
Controlled functional unit
Single, twisted, shielded, coaxial or multicore signal geometry is formed.
Lightweight shield and cover
EMI, atomic oxygen, protection and mass are optimized together.
Termination and traceability
Connector, branch, strain relief, material lot and process records remain controlled.
04 / SELECTION & VALIDATION
Inputs needed to start a custom assessment
SELECTION ITEMINFORMATION TO CONFIRM
01Mission and orbit
LEO, GEO, deep space, launch phase and mission duration
02Electrical function
Voltage, current, protocol, frequency, impedance and core count
03Mass and space
Mass per meter, diameter, bend radius and route
04Environment
Vacuum, thermal cycle, radiation, ATOX, vibration and shock
05Harness interface
Connector, branch, lacing, ground and installation process
06Verification level
Applicable ESCC/NASA documents, first article, lot and traceability
Typical applications
- Manned/unmanned LEO spacecraft
- Box-to-box analog signals
- Power distribution
- Mass-critical harnesses
Interfaces & delivery
- Single, multicore or shielded space cable
- Space connector and lightweight harness
- Fixed-length assembly, branch or pigtail
ENGINEERING NOTE
Page values do not constitute mission qualification or approval. Applicable standards, lot screening and verification levels are confirmed per project.
Ready to define a controlled specification?
Bring us the interface, environment and validation requirements.
Yidong Telecom can build a sample direction and validation matrix around the cable construction, termination and system boundaries.
