One to seven cores
1–7 core structures organized by system function.
/
SPACE / SPM / 05

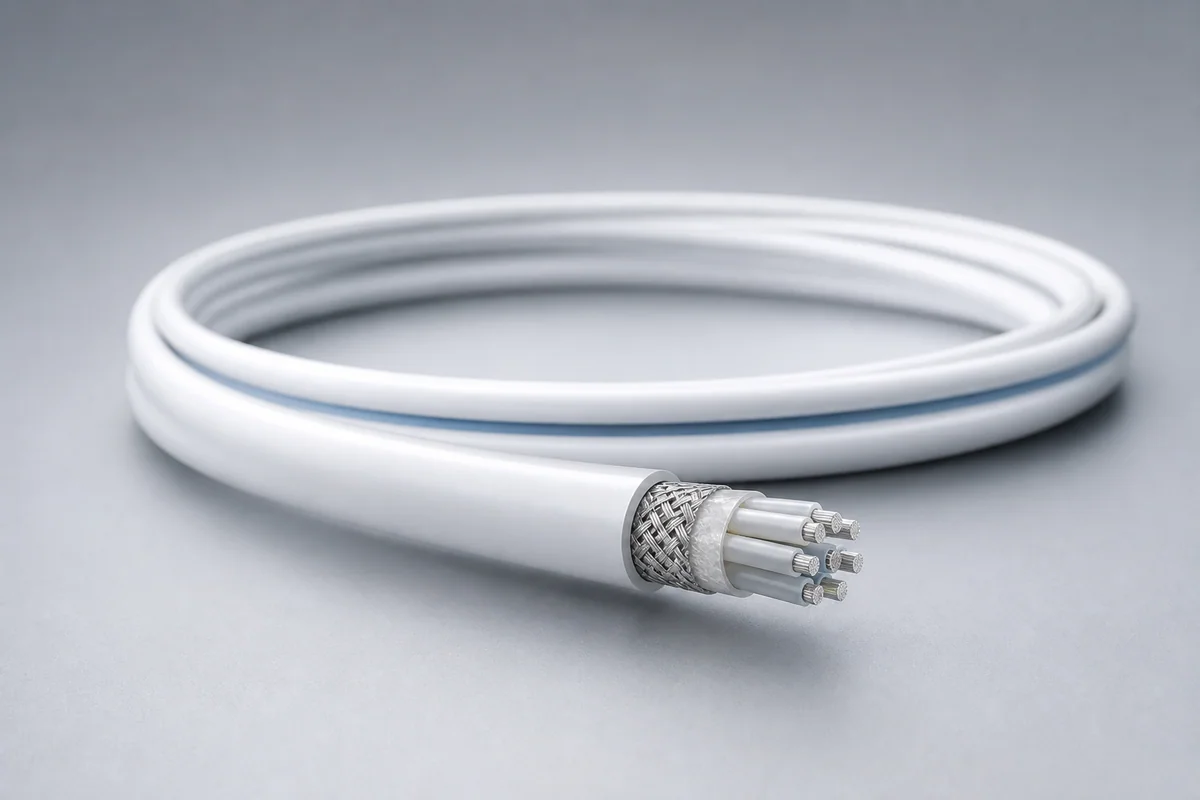

Type SPM LEO Space Cables
Thermally stable, chemically inert and atomic-oxygen-resistant materials provide reliable 600 Vrms power and low-frequency signals for manned LEO missions, transfer vehicles and optical instruments.
ESCC 3901/018600 Vrms−200 to +200 °C
PRODUCT FAMILYSpace Cables ↗
01 / CONFIGURATION DIRECTIONS
Select a configuration from the application boundaries
These configurations establish a practical discussion starting point. The final product requires a controlled specification based on interface, length, installation and validation conditions.
12–32 AWG
From low-current signal to platform power gauges.
ATOX-protected construction
For low-orbit atomic oxygen and wide temperature.
Match a solution direction to the link target
Solution codes support early technical discussions by aligning protocol, construction, link boundaries and application in one view.
SOLUTION CODEPROTOCOL / RATECONSTRUCTIONKEY BOUNDARYBEST FIT
SPACE-SPM-01One to seven cores1–7 core structures organized by system function.ESCC 3901/018International Space Station systems
SPACE-SPM-0212–32 AWGFrom low-current signal to platform power gauges.600 VrmsLow-frequency signals and optics
SPACE-SPM-03ATOX-protected constructionFor low-orbit atomic oxygen and wide temperature.−200 to +200 °CDC power distribution
MODEL NOTEPage values do not constitute mission qualification or approval. Applicable standards, lot screening and verification levels are confirmed per project.
02 / PERFORMANCE PARAMETERS
Product performance parameters
The following values describe current product performance boundaries, with the applicable model, construction or test condition retained.
PERFORMANCE METRICVALUECONFIGURATION / CONDITION
01Maximum operating voltage600 Vrms
Type SPM cable
02Temperature range−200 to +200 °C
Operating range
03Gauge range12–32 AWG
85 variants
04Core count1–7 cores
Standard variants
05JacketPFA
ATOX direction
06SpecificationESCC 3901/018
ESA QPL
Type SPM covers 1–7 cores and 12–32 AWG variants; select the final part number by core count and gauge.
Technical referenceValues are confirmed against category, gauge, length and termination
03 / TYPICAL CONSTRUCTION
From functional core to terminated interface
Space-grade conductor
Material, stranding and plating are selected for resistance, strength, flex and termination.
Low-outgassing insulation
Dielectric, thermal, vacuum-stability and processing requirements guide material selection.
Controlled functional unit
Single, twisted, shielded, coaxial or multicore signal geometry is formed.
Lightweight shield and cover
EMI, atomic oxygen, protection and mass are optimized together.
Termination and traceability
Connector, branch, strain relief, material lot and process records remain controlled.
04 / SELECTION & VALIDATION
Inputs needed to start a custom assessment
SELECTION ITEMINFORMATION TO CONFIRM
01Mission and orbit
LEO, GEO, deep space, launch phase and mission duration
02Electrical function
Voltage, current, protocol, frequency, impedance and core count
03Mass and space
Mass per meter, diameter, bend radius and route
04Environment
Vacuum, thermal cycle, radiation, ATOX, vibration and shock
05Harness interface
Connector, branch, lacing, ground and installation process
06Verification level
Applicable ESCC/NASA documents, first article, lot and traceability
Typical applications
- International Space Station systems
- Low-frequency signals and optics
- DC power distribution
- Microgravity experiments
Interfaces & delivery
- Single, multicore or shielded space cable
- Space connector and lightweight harness
- Fixed-length assembly, branch or pigtail
ENGINEERING NOTE
Page values do not constitute mission qualification or approval. Applicable standards, lot screening and verification levels are confirmed per project.
Ready to define a controlled specification?
Bring us the interface, environment and validation requirements.
Yidong Telecom can build a sample direction and validation matrix around the cable construction, termination and system boundaries.
