High-temperature motor winding
For motors with constrained cooling and elevated voltage stress.
/
POWER / MAGNET / 03

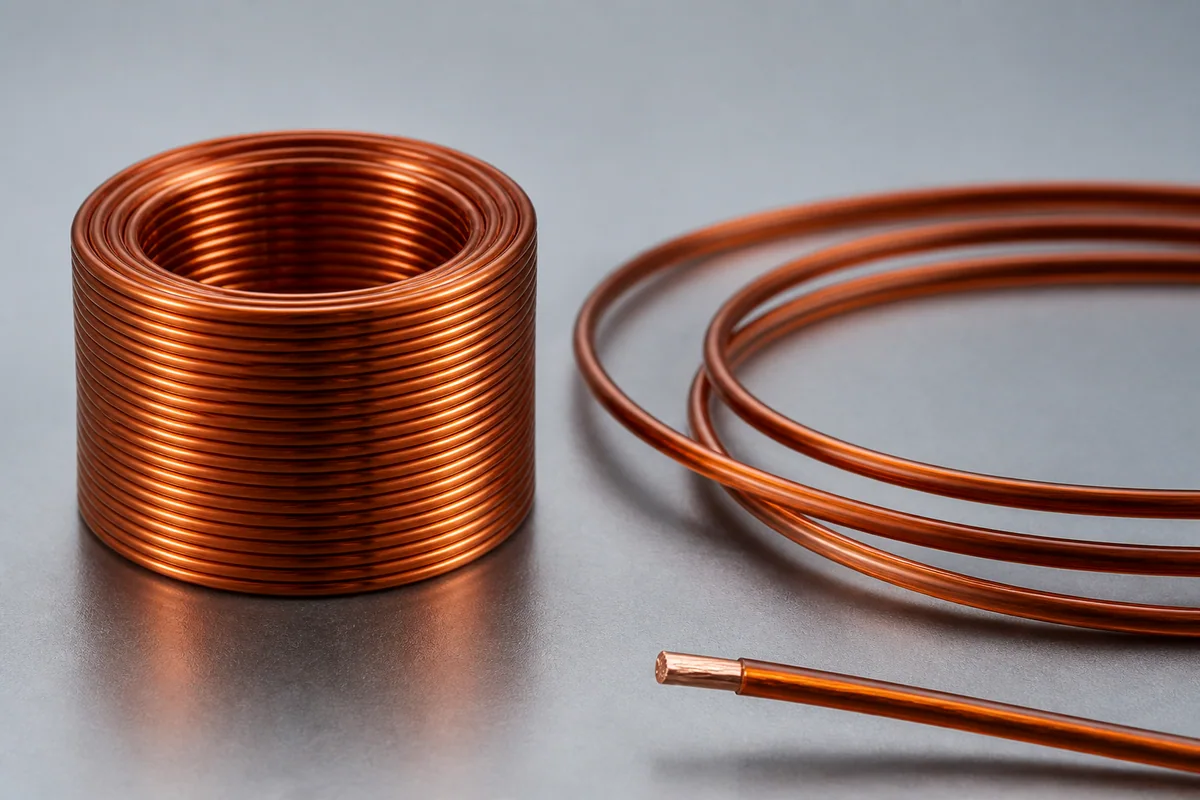

High-Temperature Magnet Wire
Engineered fluoropolymer insulation protects copper windings and maintains insulation resistance and breakdown performance in high temperature, high pressure, oil and hydrolysis environments.
300–600 V ACUp to 260 °CHydrolysis and oil resistance
PRODUCT FAMILYPower Enablers ↗
01 / CONFIGURATION DIRECTIONS
Select a configuration from the application boundaries
These configurations establish a practical discussion starting point. The final product requires a controlled specification based on interface, length, installation and validation conditions.
Downhole motor
For combined oil, water, pressure and temperature exposure.
Transformer and inductor
Conductor and insulation defined around winding radius, fill and hipot.
Match a solution direction to the link target
Solution codes support early technical discussions by aligning protocol, construction, link boundaries and application in one view.
SOLUTION CODEPROTOCOL / RATECONSTRUCTIONKEY BOUNDARYBEST FIT
POWER-MAGNET-01High-temperature motor windingFor motors with constrained cooling and elevated voltage stress.300–600 V ACOil and gas downhole motors
POWER-MAGNET-02Downhole motorFor combined oil, water, pressure and temperature exposure.Up to 260 °CHigh-temperature industrial motors
POWER-MAGNET-03Transformer and inductorConductor and insulation defined around winding radius, fill and hipot.Hydrolysis and oil resistanceTransformer and inductor windings
MODEL NOTEAmpacity, voltage and temperature rise must be defined with gauge, length, altitude, bundling, cooling and termination conditions.
02 / PERFORMANCE PARAMETERS
Product performance parameters
The following values describe current product performance boundaries, with the applicable model, construction or test condition retained.
PERFORMANCE METRICVALUECONFIGURATION / CONDITION
01Operating voltage range300–600 V AC
Magnet-wire product range
02Spark-test voltage1500 V AC
Test value
03Dielectric breakdown4.4 kV
ANSI/NEMA MW 1000; AWG 2801
04Operating temperature−55 to +260 °C
Operating range
05Insulation materialEngineered fluoropolymer
Chemical and hydrolysis resistance
06ConductorBare copper
Standard construction
Breakdown-voltage testing is based on the AWG 2801 construction; other conductor sizes and winding processes require validation.
Technical referenceValues are confirmed against category, gauge, length and termination
03 / TYPICAL CONSTRUCTION
From functional core to terminated interface
High-conductivity conductor
Gauge, stranding and plating are selected for resistance, flex and termination.
Primary insulation
Thin-wall high-temperature material establishes voltage, PD and abrasion margin.
Field or shield layer
Grading, shielding and return paths are added for high-voltage or EMI needs.
Mechanical protection
Tapes, braid or jacket improve cut-through, wear and installation durability.
Termination and strain relief
Crimp, solder, connector and thermal-cycle interfaces are controlled together.
04 / SELECTION & VALIDATION
Inputs needed to start a custom assessment
SELECTION ITEMINFORMATION TO CONFIRM
01Voltage and current
Continuous/peak voltage, current, frequency and partial-discharge boundary
02Gauge and drop
Length, conductor section, resistance and allowable voltage drop
03Thermal environment
Ambient, bundling, cooling and temperature rise
04Installation
Diameter, mass, bend radius, vibration and abrasion
05Material environment
Fluids, humidity, flame, smoke/toxicity or vacuum
06Termination
Terminal, crimp window, connector and strain relief
Typical applications
- Oil and gas downhole motors
- High-temperature industrial motors
- Transformer and inductor windings
- Coolant or moisture-exposed equipment
Interfaces & delivery
- Pigtail, terminal or crimp-contact delivery
- Single-, two- or multicore feeder construction
- Shielded or unshielded complete assembly
ENGINEERING NOTE
Ampacity, voltage and temperature rise must be defined with gauge, length, altitude, bundling, cooling and termination conditions.
Ready to define a controlled specification?
Bring us the interface, environment and validation requirements.
Yidong Telecom can build a sample direction and validation matrix around the cable construction, termination and system boundaries.
Submit requirement checklist ↗
