Fiber Optic Cables

Lightweight fiber-optic cable for aerospace and defense high-bandwidth interconnects, spanning singlemode and OM1–OM5 multimode directions through 100 Gb/s with PFA, FEP or PEEK jackets and buffered strength systems controlling optical loss, microbend and wide-temperature protection.

Up to 100 Gb/sSM / OM1–OM5−65 to +135 °C
PRODUCT FAMILYData Cables

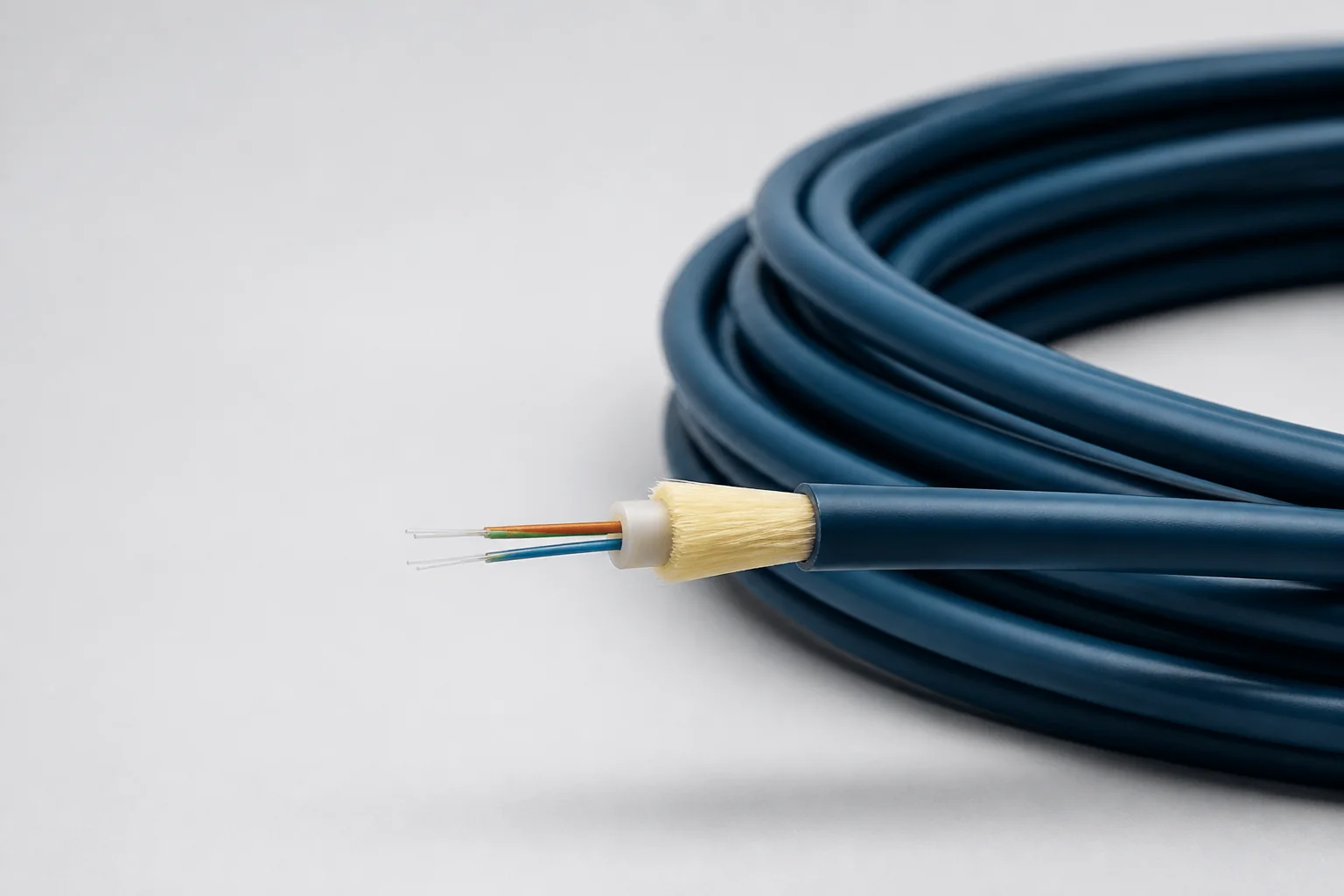

Yidong Telecom aramid-strengthened aerospace fiber-optic cable construction
DATA / FIBER / Representative construction · Final design follows the approved specification

01 / CONFIGURATION DIRECTIONS

Select a configuration from the application boundaries

These configurations establish a practical discussion starting point. The final product requires a controlled specification based on interface, length, installation and validation conditions.

01

1.8 mm rugged simplex

A protected multimode high-bandwidth channel with fuller buffer, strength and jacket layers.

02

1.2 mm lightweight simplex

Balances mechanical protection with small-diameter routing for box-to-box and internal links.

03

0.9 mm compact optical unit

For dense connectors, breakout assemblies and space-constrained internal equipment.

Match a solution direction to the link target

Solution codes support early technical discussions by aligning protocol, construction, link boundaries and application in one view.

SOLUTION CODEPROTOCOL / RATECONSTRUCTIONKEY BOUNDARYBEST FIT
CM-FO-18-MMMultimode · up to 100 Gb/s1.8 mm simplex with buffer, aramid strength and rugged jacket≤ 5.0 dB/km @ 850 nm · ≤ 3.0 dB/km @ 1300 nmAvionics backbones, HD video and high-reliability box links
CM-FO-12-LWProject-configured SM / OM1–OM51.2 mm lightweight simplex construction≤ 1.5 dB/km @ 1300 nmLightweight box links and dense airborne harnesses
CM-FO-09-COMPACTCompact singlemode or multimode path0.9 mm optical unit with PFA/FEP/PEEK direction3.0 / 1.0 dB/km @ 850 / 1310 nmConnector breakouts, internal equipment and confined links

MODEL NOTESolution codes support early fiber-class, diameter and environment matching. Final part number, numerical aperture, wavelength, jacket, connectors and complete optical budget are confirmed to the system configuration.

02 / PERFORMANCE PARAMETERS

Product performance parameters

The following values describe current product performance boundaries, with the applicable model, construction or test condition retained.

PERFORMANCE METRICVALUECONFIGURATION / CONDITION
01Maximum data rate100 Gb/s

1.8 / 1.2 / 0.9 mm simplex constructions

02Maximum optical loss≤ 5.0 dB/km @ 850 nm

1.8 mm multimode configuration limit

03Maximum optical loss≤ 3.0 dB/km @ 1300 nm

1.8 mm multimode configuration

04Maximum optical loss≤ 1.5 dB/km @ 1300 nm

1.2 mm configuration

05Optical loss3.0 / 1.0 dB/km

0.9 mm; 850 / 1310 nm

06Operating temperature−65 to +135 °C

1.8 mm and 0.9 mm versions

07Jacket / fiber classesPFA · FEP · PEEK / SM · OM1–OM5

Configuration dependent

Optical loss, temperature and jacket material vary by diameter, fiber class and part number; the final specification must identify the exact part number.

Technical referenceValues are confirmed against category, gauge, length and termination

03 / TYPICAL CONSTRUCTION

From functional core to terminated interface

LAYER 01

Optical fiber

Singlemode or multimode glass selected for the optical system.

LAYER 02

Primary coating/buffer

Protects the glass and manages microbend sensitivity.

LAYER 03

Strength member

Carries tensile load and separates installation stress from the fiber.

LAYER 04

Protective jacket

Configured for abrasion, flex, cleanliness, flame or vacuum direction.

LAYER 05

Optical termination

Ferrule, polish, alignment and strain relief are controlled as a process.

04 / SELECTION & VALIDATION

Inputs needed to start a custom assessment

SELECTION ITEMINFORMATION TO CONFIRM
01Optical system

Wavelength, source, receiver and allowable optical budget

02Fiber type

Singlemode, multimode, simplex, duplex or multifiber

03Length and routing

Installed length, bend radius and pull path

04Mechanical load

Tension, crush, flex, vibration and connector retention

05Environment

Temperature, cleanliness, vacuum, fluids or flame

06Termination

Connector family, polish, breakout and inspection method

Typical applications

  • High-speed equipment networks
  • EMI-sensitive avionics links
  • Cameras, sensors and instrumentation
  • Long-reach or isolated system links

Interfaces & delivery

  • Simplex and duplex optical connectors
  • Multifiber and ruggedized interfaces
  • Custom breakouts and hybrid assemblies
ENGINEERING NOTE

Optical performance depends on fiber class, wavelength, diameter, connector finish, length, bend state and contamination control; the complete link must be verified.

Ready to define a controlled specification?

Bring us the interface, environment and validation requirements.

Yidong Telecom can build a sample direction and validation matrix around the cable construction, termination and system boundaries.
