Box-to-box differential link
Two controlled-impedance copper paths provide transmit and receive connectivity between avionics enclosures.
/
DATA / FC / 08
Fibre Channel Copper Cables
26 AWG, 150-ohm differential copper cable for reliable airborne and defense box-to-box links through 1.625 GHz, using 3.0 ps/m intra-pair skew and wide-temperature shielding to preserve serial-channel integrity.
Up to 1.625 GHz150 ± 15 Ω26 AWG
PRODUCT FAMILYData Cables ↗
01 / CONFIGURATION DIRECTIONS
Select a configuration from the application boundaries
These configurations establish a practical discussion starting point. The final product requires a controlled specification based on interface, length, installation and validation conditions.
Circular-connector assembly
Supports MIL-DTL-38999-style connectors and size-8 high-speed contact direction.
Compact DB-9 assembly
For small equipment interconnect, laboratory access and service testing.
Match a solution direction to the link target
Solution codes support early technical discussions by aligning protocol, construction, link boundaries and application in one view.
SOLUTION CODEPROTOCOL / RATECONSTRUCTIONKEY BOUNDARYBEST FIT
CM-FC-150-CIRCFibre Channel copper · up to 1.625 GHz26 AWG dual differential pairs, overall shield and circular interface150 ± 15 Ω · 3.0 ps/m intra-pair skewAvionics enclosures and mission-computing equipment
CM-FC-150-DB9Compact Fibre Channel copper linkControlled-impedance copper cable with DB-9 termination87% velocity · < 15 VSmall equipment, service testing and short box links
CM-FC-150-HARNESSCustom box-to-box serial channelConfigured by route, shield grounding and connectors−65 to +200 °C · channel validationDefense vehicles, storage equipment and custom airborne networks
MODEL NOTEThis family is Fibre Channel copper cable, not an optical-fiber jumper. Solution codes support early interface matching; final part number, length, connectors, shield termination and channel loss are confirmed to system requirements.
02 / PERFORMANCE PARAMETERS
Product performance parameters
The following values describe current product performance boundaries, with the applicable model, construction or test condition retained.
PERFORMANCE METRICVALUECONFIGURATION / CONDITION
01Maximum transmission frequency1.625 GHz
Differential data link
02Standard impedance150 ± 15 Ω
Nominal value
03Typical operating voltage< 15 V
System operating condition
04Velocity / delay87% · 4.0 ns/m
Nominal values
05Capacitance / intra-pair skew28.2 pF/m · 3.0 ps/m
Typical values
06Dielectric withstand1500 / 1000 Vrms
Conductor-conductor / conductor-shield
07Temperature range−65 to +200 °C
FEP jacket
Values apply to the 26 AWG Fibre Channel copper construction.
Technical referenceValues are confirmed against category, gauge, length and termination

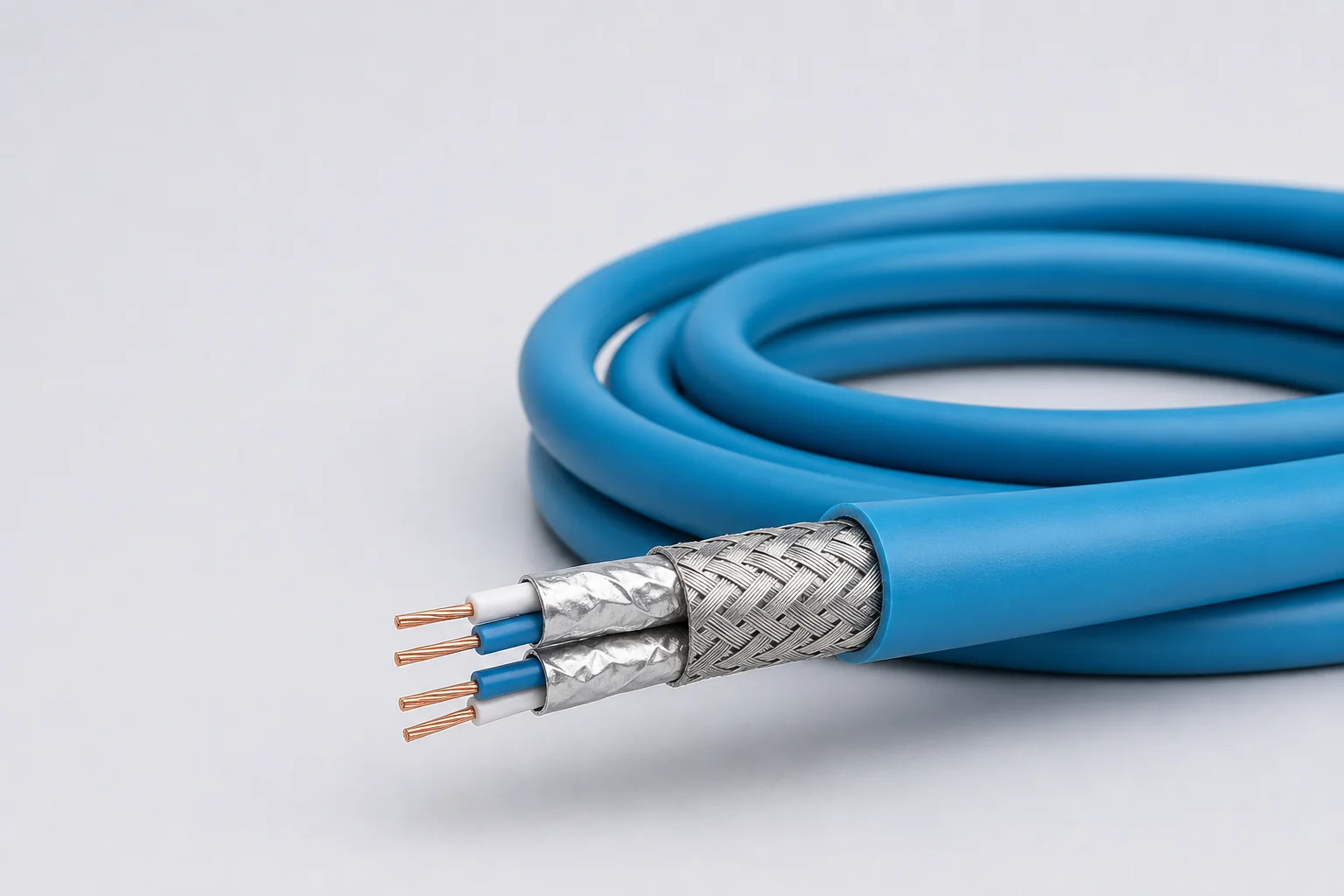

03 / TYPICAL CONSTRUCTION
From functional core to terminated interface
Silver-plated copper-alloy conductors
Gauge, voltage drop, strength and termination contacts define the conductor construction.
Low-loss insulation
Expanded PTFE/PTFE controls impedance, delay and high-frequency attenuation.
Controlled signal units
Differential pairs, quads or multichannel video/data units are formed around the protocol.
Individual and overall shields
Pair coupling, external EMI and connector return continuity are managed together.
Environmental jacket
Wide temperature, abrasion, flame, marking and harness termination are balanced.
04 / SELECTION & VALIDATION
Inputs needed to start a custom assessment
SELECTION ITEMINFORMATION TO CONFIRM
01Protocol and speed
Interface revision, target rate, encoding and maximum channel length
02Electrical boundary
Impedance, insertion/return loss, skew and dielectric withstand
03Channel construction
Pair count, auxiliary wires, power and shield zoning
04Installation envelope
Gauge, diameter, mass, bend radius and harness section
05Environment
Temperature, vibration, abrasion, fluids, smoke/toxicity and flame
06Termination
Connector, contact, backshell, grounding and strain relief
Typical applications
- Avionics data networks
- Mission computing and storage
- Defense vehicle electronics
- High-speed serial box links
Interfaces & delivery
- Aerospace circular or rectangular connectors
- High-density contacts and backshells
- Pigtail, fixed-length harness or complete assembly
ENGINEERING NOTE
Data rate and channel capability depend on the final cable, length, connectors and termination process and must be confirmed as a complete channel.
Ready to define a controlled specification?
Bring us the interface, environment and validation requirements.
Yidong Telecom can build a sample direction and validation matrix around the cable construction, termination and system boundaries.
Submit requirement checklist ↗
