Static signal cable
Control and sensor connection inside clean equipment.
/
DATA / CLEAN / 13

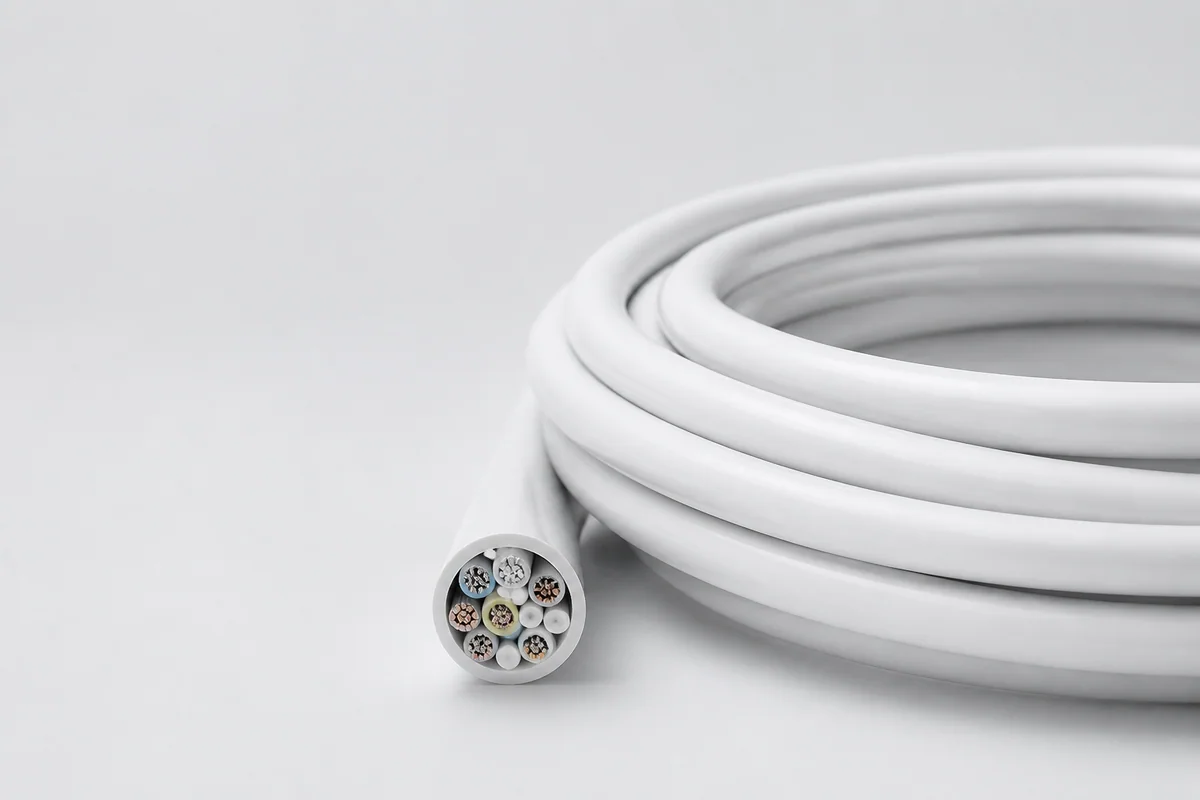

Ultraclean Static Round Cables
ISO Class 1 static round cable for lithography and precision semiconductor tools, combining signal and power cores while controlling particles and vacuum outgassing.
ISO Class 1−20 to +260 °CSignal + power
PRODUCT FAMILYData Cables ↗
01 / CONFIGURATION DIRECTIONS
Select a configuration from the application boundaries
These configurations establish a practical discussion starting point. The final product requires a controlled specification based on interface, length, installation and validation conditions.
Static power cable
Defined around current, temperature rise and material restrictions.
Terminated assembly
Combines equipment connector, route and clean assembly process.
Match a solution direction to the link target
Solution codes support early technical discussions by aligning protocol, construction, link boundaries and application in one view.
SOLUTION CODEPROTOCOL / RATECONSTRUCTIONKEY BOUNDARYBEST FIT
DATA-CLEAN-01Static signal cableControl and sensor connection inside clean equipment.ISO Class 1Lithography tools
DATA-CLEAN-02Static power cableDefined around current, temperature rise and material restrictions.−20 to +260 °CWafer metrology and inspection
DATA-CLEAN-03Terminated assemblyCombines equipment connector, route and clean assembly process.Signal + powerVacuum and ultraclean equipment
MODEL NOTEData rate and channel capability depend on the final cable, length, connectors and termination process and must be confirmed as a complete channel.
02 / PERFORMANCE PARAMETERS
Product performance parameters
The following values describe current product performance boundaries, with the applicable model, construction or test condition retained.
PERFORMANCE METRICVALUECONFIGURATION / CONDITION
01Cleanroom classISO Class 1
ISO 14664-1
02Temperature range−20 to +260 °C
Application dependent
03Minimum bend radius> 10× OD
Static round cable
04Core typesSignal + power
Custom combination
05H₂O outgassing6.00E−10 mbar·l/s·cm²
AMU 18
06Volatile CxHy outgassing2.00E−12 mbar·l/s·cm²
AMU 45–100
07Nonvolatile CxHy outgassing5.00E−13 mbar·l/s·cm²
AMU 101–200
Temperature and bend requirements depend on the equipment application; outgassing values are shown by test species.
Technical referenceValues are confirmed against category, gauge, length and termination
03 / TYPICAL CONSTRUCTION
From functional core to terminated interface
Silver-plated copper-alloy conductors
Gauge, voltage drop, strength and termination contacts define the conductor construction.
Low-loss insulation
Expanded PTFE/PTFE controls impedance, delay and high-frequency attenuation.
Controlled signal units
Differential pairs, quads or multichannel video/data units are formed around the protocol.
Individual and overall shields
Pair coupling, external EMI and connector return continuity are managed together.
Environmental jacket
Wide temperature, abrasion, flame, marking and harness termination are balanced.
04 / SELECTION & VALIDATION
Inputs needed to start a custom assessment
SELECTION ITEMINFORMATION TO CONFIRM
01Protocol and speed
Interface revision, target rate, encoding and maximum channel length
02Electrical boundary
Impedance, insertion/return loss, skew and dielectric withstand
03Channel construction
Pair count, auxiliary wires, power and shield zoning
04Installation envelope
Gauge, diameter, mass, bend radius and harness section
05Environment
Temperature, vibration, abrasion, fluids, smoke/toxicity and flame
06Termination
Connector, contact, backshell, grounding and strain relief
Typical applications
- Lithography tools
- Wafer metrology and inspection
- Vacuum and ultraclean equipment
- Precision semiconductor motion systems
Interfaces & delivery
- Aerospace circular or rectangular connectors
- High-density contacts and backshells
- Pigtail, fixed-length harness or complete assembly
ENGINEERING NOTE
Data rate and channel capability depend on the final cable, length, connectors and termination process and must be confirmed as a complete channel.
Ready to define a controlled specification?
Bring us the interface, environment and validation requirements.
Yidong Telecom can build a sample direction and validation matrix around the cable construction, termination and system boundaries.
