High-speed data plus power
Combines high-speed pairs, a low-speed pair and power conductors in one lightweight cable.
/
DATA / USB / 12
USB High-Speed Data Cables
USB data-and-power interconnects for aircraft, vehicles and mission equipment through 10 Gb/s, using 90-ohm high- and low-speed differential pairs with voltage drop, skew, shielding and wide-temperature termination managed as a complete channel.
Up to 10 Gb/s90 Ω differential−65 to +200 °C
PRODUCT FAMILYData Cables ↗
01 / CONFIGURATION DIRECTIONS
Select a configuration from the application boundaries
These configurations establish a practical discussion starting point. The final product requires a controlled specification based on interface, length, installation and validation conditions.
Lightweight fluoropolymer type
Supports wide-temperature, flame and harness marking requirements while controlling strip dimensions and shield continuity.
Halogen-free PU type
A flexible direction for selected environments; temperature, flame and fluid compatibility are confirmed by configuration.
Match a solution direction to the link target
Solution codes support early technical discussions by aligning protocol, construction, link boundaries and application in one view.
SOLUTION CODEPROTOCOL / RATECONSTRUCTIONKEY BOUNDARYBEST FIT
CM-USB-10G-FPUSB · up to 10 Gb/sHigh-speed pair plus low-speed pair and power90 ± 5 / ± 10 Ω · < 15 VMission equipment, high-speed peripherals and content loading
CM-USB-LW-FPLightweight high-speed USBFluoropolymer insulation plus composite shield−65 to +200 °CAvionics, vehicles and mass-sensitive harnesses
CM-USB-HF-PUHalogen-free high-speed USBFlexible halogen-free polyurethane jacketTemperature and fluids confirmed by configurationFlexible equipment, soldier systems and selected cabin environments
MODEL NOTESolution codes support early data-rate, power and environment matching. Final part number, conductor size, voltage drop, shield termination and connectors must be confirmed as a complete channel.
02 / PERFORMANCE PARAMETERS
Product performance parameters
The following values describe current product performance boundaries, with the applicable model, construction or test condition retained.
PERFORMANCE METRICVALUECONFIGURATION / CONDITION
01Maximum data rate10 Gb/s
High-speed USB configuration
02High-/low-speed pair impedance90 ± 5 / 90 ± 10 Ω
Applicable pairs
03Typical operating voltage< 15 V
System operating condition
04Velocity / delay80% · 4.07 ns/m
Nominal values
05Capacitance / max intra-pair skew50.0 pF/m · 15.0 ps/m
High-speed pair
06Dielectric withstand1500 / 1000 Vrms
Conductor-conductor / conductor-shield
07Temperature range−65 to +200 °C
Engineered-fluoropolymer version
Temperature applies to the engineered-fluoropolymer version; confirm halogen-free polyurethane variants by part number.
Technical referenceValues are confirmed against category, gauge, length and termination

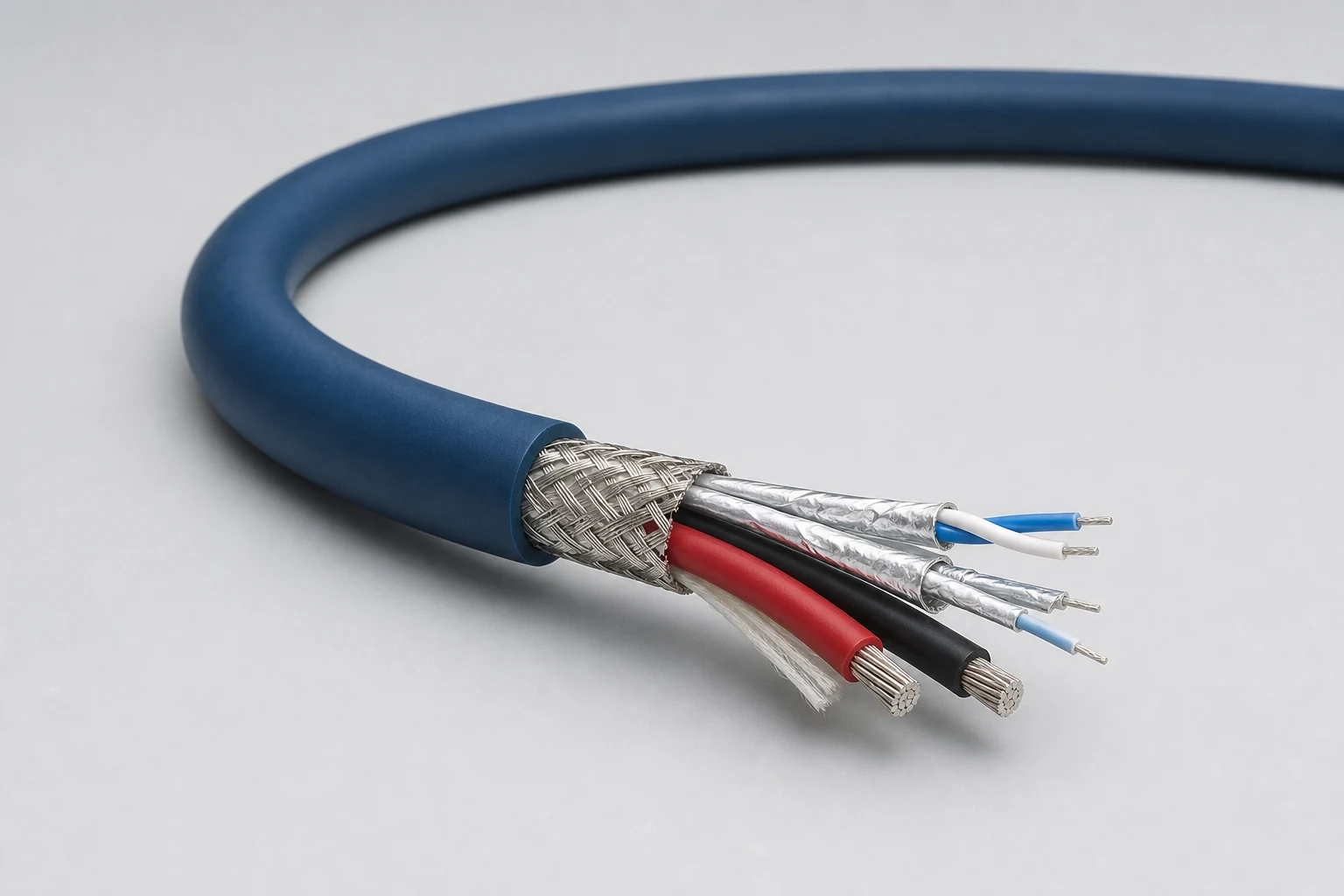

03 / TYPICAL CONSTRUCTION
From functional core to terminated interface
Silver-plated copper-alloy conductors
Gauge, voltage drop, strength and termination contacts define the conductor construction.
Low-loss insulation
Expanded PTFE/PTFE controls impedance, delay and high-frequency attenuation.
Controlled signal units
Differential pairs, quads or multichannel video/data units are formed around the protocol.
Individual and overall shields
Pair coupling, external EMI and connector return continuity are managed together.
Environmental jacket
Wide temperature, abrasion, flame, marking and harness termination are balanced.
04 / SELECTION & VALIDATION
Inputs needed to start a custom assessment
SELECTION ITEMINFORMATION TO CONFIRM
01Protocol and speed
Interface revision, target rate, encoding and maximum channel length
02Electrical boundary
Impedance, insertion/return loss, skew and dielectric withstand
03Channel construction
Pair count, auxiliary wires, power and shield zoning
04Installation envelope
Gauge, diameter, mass, bend radius and harness section
05Environment
Temperature, vibration, abrasion, fluids, smoke/toxicity and flame
06Termination
Connector, contact, backshell, grounding and strain relief
Typical applications
- Electronic flight bags and portable devices
- HD content loading
- Sensor and peripheral networks
- Soldier and vehicle connectivity
Interfaces & delivery
- Aerospace circular or rectangular connectors
- High-density contacts and backshells
- Pigtail, fixed-length harness or complete assembly
ENGINEERING NOTE
Data rate and channel capability depend on the final cable, length, connectors and termination process and must be confirmed as a complete channel.
Ready to define a controlled specification?
Bring us the interface, environment and validation requirements.
Yidong Telecom can build a sample direction and validation matrix around the cable construction, termination and system boundaries.
Submit requirement checklist ↗
